Commodity: Hi-Bus KNX 640mA Power Supply Module

Model No.: HKL/D0640412T

Application Scenarios:Office buildings,shopping malls,libraries, convention and exhibition centers and other occasions that require intelligent control of lighting

Product Overview:

providing working voltage for BCU unit. Bus current, bus voltage, and other communication signals can be transmitted and diagnosed through the KNX bus.

Key Features:

Power supply and communication for KNX system equipment
2-ways outputs: a.30V DC output with carrier communication b.Auxiliary power supply 30 V DC output without communication
Input: 220V AC; total output up to 640mA
High efficiency(about 80% efficacy)
Stable current output
Short circuit;,overload & overheat protection.

Power Supply	Operating Voltage	100…264V AC (50/60Hz)
	Efficiency	80%
Output	Number of Dimming Channels	2
	Model	HKL/D0640412T
	Output Voltage	30V DC+1/-2V (one is a 30V DC output with carrier communication, and the other is an auxiliary 30V DC output without communication).
	Total output current	640mA
	Continuous short-circuit current	<1.3 A
Connection	EIB/KNX	EIB bus connection terminals
	Load Output	2 spiral screws to achieve auxiliary power output
	Load Input	3 spiral screws are used to achieve AC power input, and L, N, and E are wired separately.
KNX Bus Operation and Display	Key	Reset restart Key
	Key and Red LED	After pressing the reset and restart Key, the red LED will light up and the bus voltage will be disconnected. After 20 seconds, the power module will reset and work normally. (Note: the voltage of the auxiliary power supply is not affected by the reset).
Green LED indicator light	80mA Green LED 320mA Green LED 640mA Green LED	There are three green LEDs in total, which are used to display the load current of 80mA, 320mA, and 640mA. When the load of the power supply reaches a certain value, the corresponding LED light will light up.
OLP/PW 2 colors of LED indicator lights	Green LED Flashing	Indicates that the power module is working properly
	Red LED	When the power module experiences overload, the red LED lights up for 2 seconds. After 2 seconds, the power module enters a reset and restarts, and the bus voltage is disconnected. Wait for 25 seconds for the reset before the power module retests. If it is still overloaded, repeat the above process; If there is no overload detected, the bus voltage will return to normal.
Product Protection		Short circuit protection overload protection Overheat protection
Protection type level	IP20, EN60 529
Environmental Temperature	Operating temperature	-5 ℃~45 ℃
	Storage temperature	-25 ℃~55 ℃
	Transportation temperature	-25 ℃~70 ℃
Environmental condition	Humidity	no condensation
Installation Method	Standard 35mm DIN rail installation	Installed on a 35mm rail, DIN EN 60 715
Dimensions (HWD)	90×72×64 mm
CE Standard	Complies with EMC standards and low voltage standards
Weight	0.5KG

Model Selection:

HKL/D0640412T(640mA)

HKL/D0960412T(960mA)

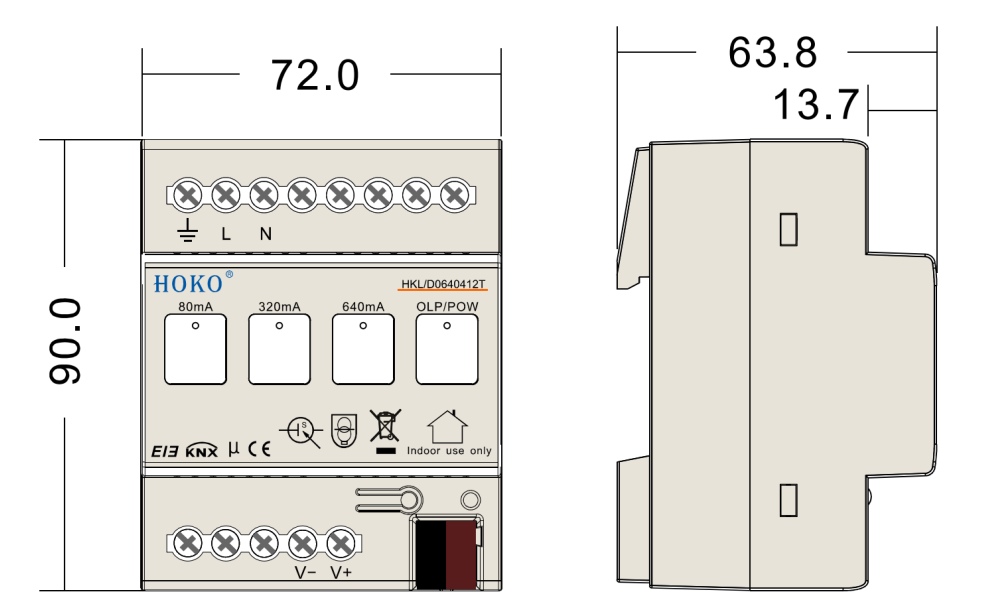

Dimention:

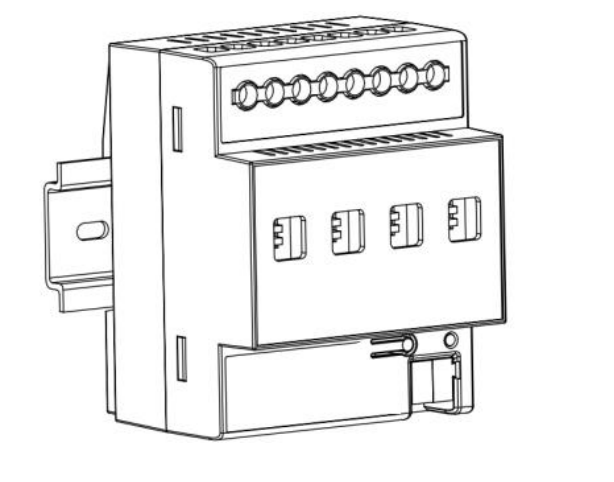

Din rail installation:

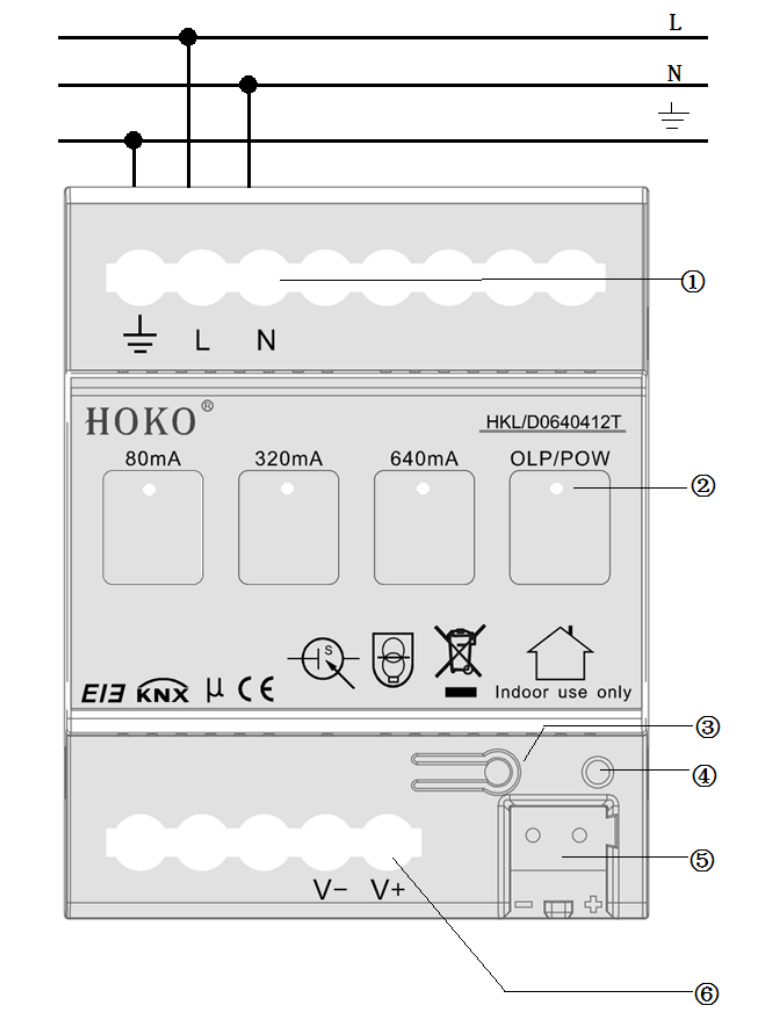

Wiring diagram:

AC power supply input terminal interface
Load indicator(green),over load(red),working(green)
Reset button
Reset indicator(red)
EIB power supply output terminal interface
Auxiliary power supply output terminal interface

Hi-Bus KNX 640mA Power Supply Module
