DDZY/DTZY Single/Three Phase Smart Fee Controal Meter（Wall mounted）
Application Scenarios:
Measurement & power meter box in commercial or public buildings,schools,apartment,residential buildings
Product overview
LCD display,Integrated The functions of displaying full electricity quantity measurement,setting time frame and multiple rate,pulse output
harmonic measurement,remote cost control and wireless communication.The meter designed conveniently install, high accuracy and strong
anti-interference.
Key Features:
|
RF Voltage |
3×57.7/100V,3×100V,3×220/380V |
|
Normal Working Voltage |
Signal voltage powr supply: 80%Un～115%Un |
|
Main Current Specification |
3×0.3(1.2)A, 3×1.5(6)A |
|
Accuracy |
Active: 0.5S Reactive: 2.0 |
|
Active Starting Current |
0.5S via transformer access: 0.001 In |
|
Reactive Starting Current |
2.0 via transformer access: 0.003 In |
|
Frequency |
(50±5%)Hz |
|
Working Temperature |
Specified temperature range: -25℃~+60℃ Extreme range: -40℃~+70℃ |
|
Relative Humidty |
≤95% |
|
Voltage Power Consumption |
≤1.5W, 6VA |
|
Current Power Consumption |
Via tansformer access: <0.2VA Direct access: <0.4VA |
|
MTTF |
≥ 10 years |
|
Dimention |
290×170×85mm(heigh × width × thickness) |
.png)

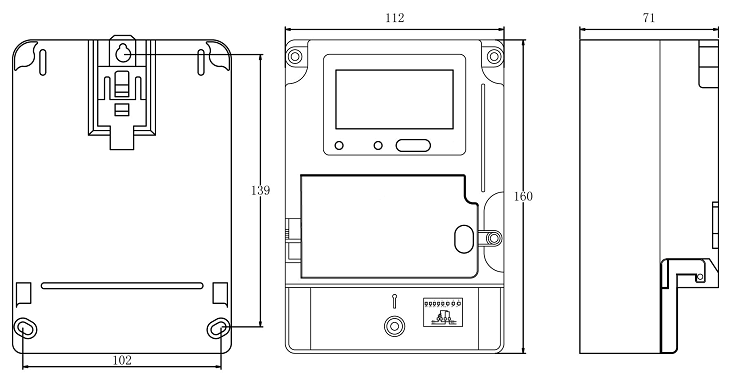

single phase:
.png)

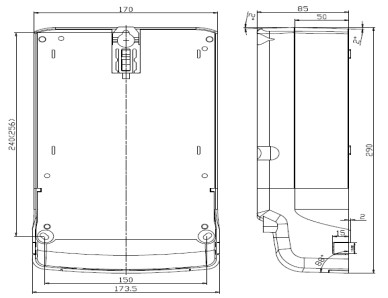

Three phase:
.png)
